YASKAWA MPP3S

RTM-YDG23 Robotic Training Module

Application
Summary

A member of the GennFlex family of industrial training modules, the RTM-YDG23 is a versatile yet compact robotic training system, powered by the YASKAWA MPP3S robot and FS100 controller. This pre-engineered, Industry 4.0-ready solution is ideal for classrooms, labs, and training centers offering automation or mechatronic programs.

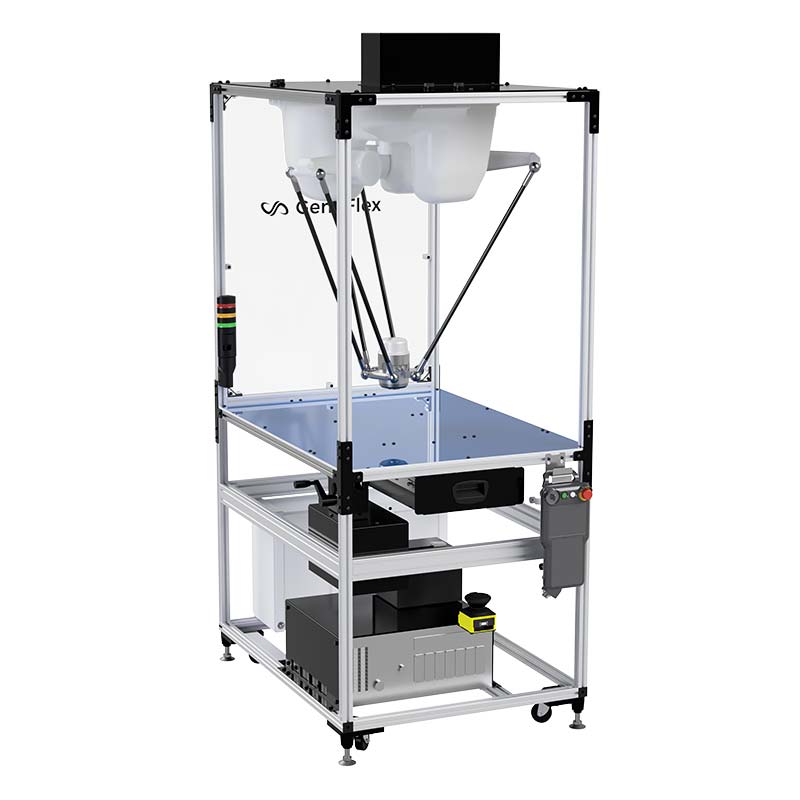

RTM-YDG23 Robotic Training Module

Features At-a-Glance

Flexible Configuration
Modular
Solution
Tooling & Accessories
220 Volt Single Phase Power
Minimal
Footprint
3 KG / 6.6 LB PAYLOAD

Description

A member of the GennFlex family of industrial training modules, the RTM-YDG23 is a versatile yet compact robotic training system, powered by the YASKAWA MPP3S robot and FS100 controller. This pre-engineered, Industry 4.0-ready solution is ideal for classrooms, labs, and training centers offering automation or mechatronic programs.

Key Features

  • Flexible Configuration
    Flexible Configuration

    Easily scale and augment your RTM-YDG23 robotic module to match the requirements of you curriculum.
    The RTM-YDG23, like other GennFlex training modules, comes in a standard base package that can be easily adapted to your unique curriculum requirements. The flexibility of the design allows using the RTM-YDG23 at different levels of training complexity, from the basics all the way to the levels approaching the real production environment.

  • Scalable Solution
    Scalable Solution

    The RTM-YDG23 operates independently, or in conjunction with the other GennFlex industrial training modules. Representing the next generation of industrial training systems, the RTM-YDG23 is more than a stand-alone robot cart - it is part of a highly adaptable and modular industrial training system.

  • Working Surface Modularity
    Working Surface Modularity

    The RTM-YDG23 working surface is designed to accommodate different robot and accessory module positions to optimize its operation for a given routine.

  • Component Level Modularity
    Component Level Modularity

    With a variety of optional plug-n-play modules, such as 2D/3D vision, conveyors, rotaries, and linear positioners, you can augment the RTM-YDG23 functionality as needed. By default, the RTM-YDG23 includes a quiet electric gripper with adjustable fingers.

  • SYSTEM LEVEL MODULARITY
    SYSTEM LEVEL MODULARITY

    Combine the RTM-YDG23 with the available GennFlex training modules to build manufacturing cells on-the-fly and reproduce a full production cycle, from the raw material processing to final product packaging.

  • Robust Foundation
    Robust Foundation

    Lightweight extruded aluminum cart is fully equipped with a suite of industrial grade academic tools to meet the requirements of secondary and post-secondary educational programs. The cart's dimensions and design is standardized across the entire RTM series of training modules, thus ensuring high levels of modularity and interoperability.

  • 220 Volt Single Phase power
    220 Volt Single Phase power

    Plugs into a 220 Volt 3-Phse power outlet.

  • Minimal Footprint
    Minimal Footprint

    The RTM-YDG23 is easily transportable, fits through standard 32 inch door openings and easily glides on adjustable castors.

Specifications

RTM-YDG23 Data Sheet
Design
FENCELESS
Frame Structure
Extruded Aluminum
Top Surface Material
G-10 Composite
Power Requirement
220 VAC Single Phase

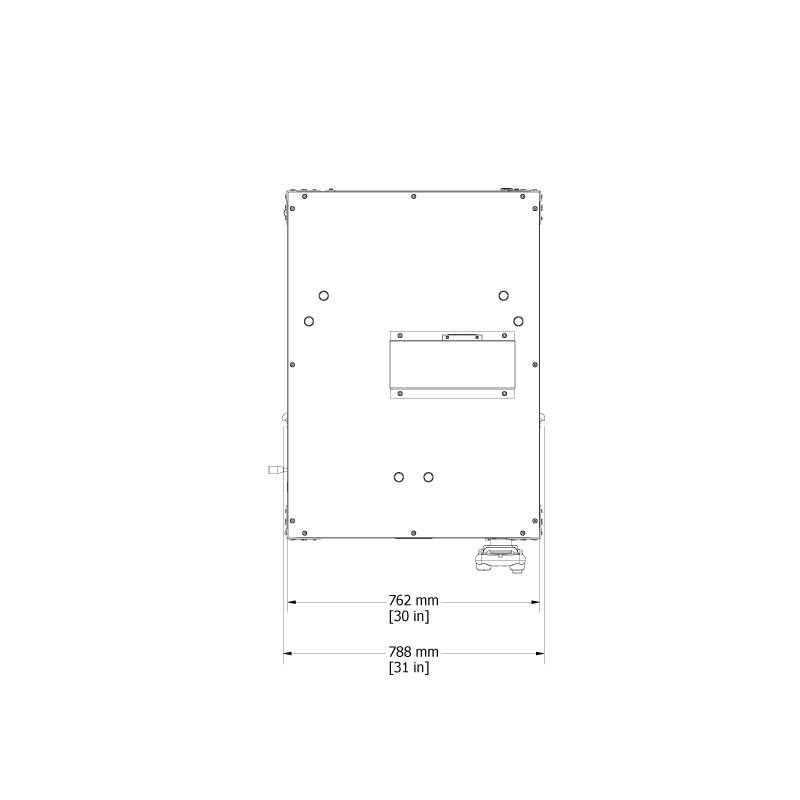

Width
788 mm (31 in)

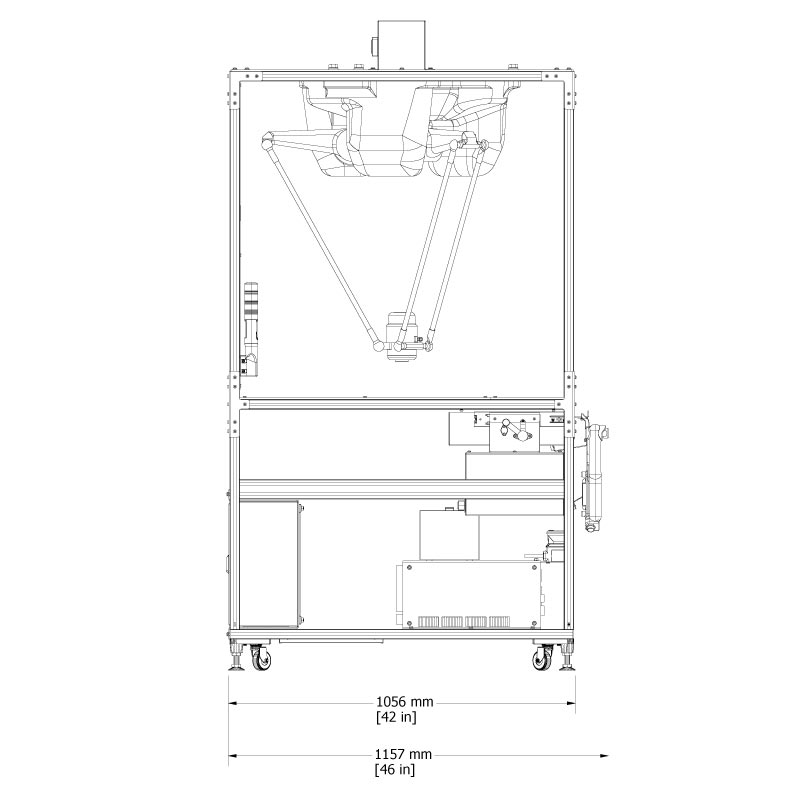

Length
1,056 mm (42 in)

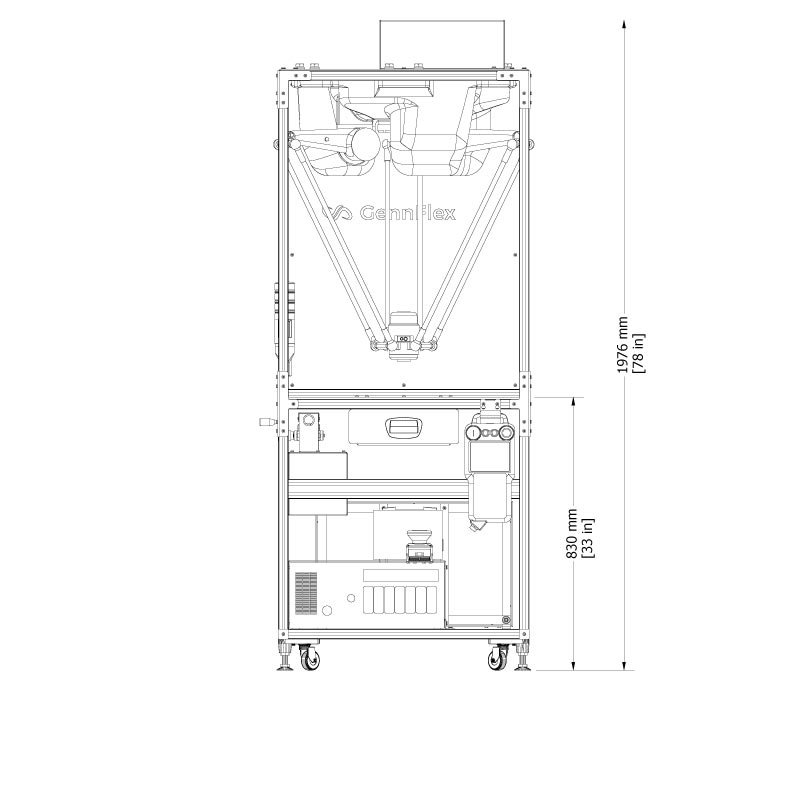

Height
1,976 mm (78 in)
Weight
200 kg (440 lb)
MotoMINI Data Sheet
Construction
4-Axis Delta Robot
Horizontal Reach
800 mm (31.5 in)
Stroke
200 mm (7.9 in)
Repeatability
±0.1 mm (±0.004 in)
Power Consumption
1.5 kVA
Payload
3 kg (6.6 lb)
Controller
FS100
Pendant
Standard

Downloads

SAFETY FEATURES

Student safety is the cornerstone of our design philosophy

  • Safety Scanner
    Safety Scanner

    Fenceless design with integrated IDEC or Keyence laser safety scanner offers 270ᵒ of unobstructed coverage for a safe working zone. If anyone enters the safe zone during robot operation, the scanner will instantly stop the robot.

  • Reduced Robot Speed
    Reduced Robot Speed

    Robot play speed is limited to 25% for safety.

  • Emergency stop switch
    Emergency stop switch

    In addition to the integrated safety scanner, there is an emergency stop switch located on the Smart or Standard pendant.

  • Light Tower
    Light Tower

    Immediate indication of process status is a must in any industrial application. The RTM-YDG23 includes a 3-Tier IDEC Light Tower mounted on the back wall of the module.

Powered By YASKAWA

Yaskawa MPP3S Delta Robot

Handling, Picking & Packing with the MPP-series

The Yaskawa MPP3S 4-axis high-speed robot with parallel kinematic system combines the speed of the delta design with a high payload capacity and a large working range. Due to the high torque of the fourth axis, the so-called wrist axis, the MOTOMAN MPP3S moves payloads of up to 3 kg at unprecedented speeds.

Yaskawa FS100 Controller

High Performance Industrial Robot Controller
The YASKAWA FS100 controller generation has been specially developed for the Picking and Packing sectors and for further handling applications. The development goal was “Fast, safe, open, small”. Real-time processing of sensor signals, reactions to camera information and other high-speed applications are thus made possible.

Yaskawa MotoSim Software

Build and Simulate a Robotic Workcell
Yaskawa provides MotoSim EG-VRC for building and simulating your robot cell. MotoSim is designed for accurate offline programming of complex systems. With the virtual robot controller function, simulation software can be used for optimizing robot and equipment placement, reach modeling, accurate cycle calculations, automatic path generation.

Integrated Storage Drawer

Every RTM module comes equipped with an integrated storage drawer. Inside the drawer you will find pre-cut foam inserts for a set of tools and accessories supplied with the module.

Scope Of Delivery
