YASKAWA GP4

RTM-YAG14 Robotic Training Module

Application
Summary

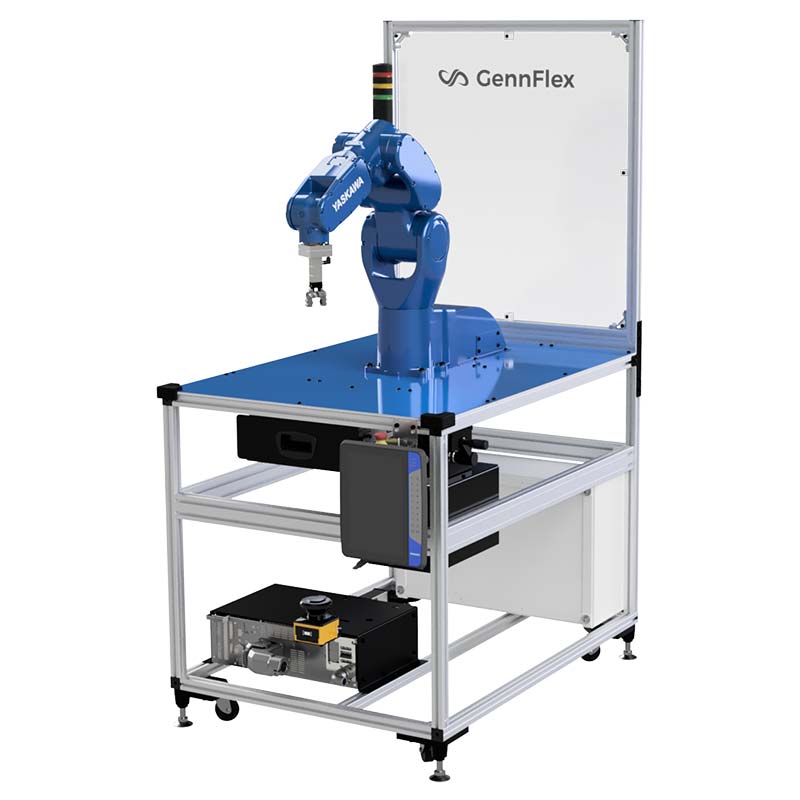

A member of the GennFlex family of industrial training modules, the RTM-YAG14 is a versatile robotic training system, powered by the YASKAWA GP4 robot and YRC1000micro controller. This pre-engineered, Industry 4.0-ready solution is ideal for classrooms, labs, training centers offering automation or mechatronic programs.

RTM-YAG14 Robotic Training Module

Features At-a-Glance

Flexible Configuration
Modular
Solution
Tooling & Accessories
110 Volt Power Requirement
Minimal
Footprint
4 KG / 8.8 LB PAYLOAD

Description

A member of the GennFlex family of industrial training modules, the RTM-YAG14 is a versatile robotic training system, powered by the YASKAWA GP4 robot and YRC1000micro controller. This pre-engineered, Industry 4.0-ready solution is ideal for classrooms, labs, training centers offering automation or mechatronic programs.

Key Features

  • Flexible Configuration
    Flexible Configuration

    Easily scale and augment your RTM-YAG14 robotic module to match the requirements of you curriculum.
    The RTM-YAG14, like other GennFlex training modules, comes in a standard base package that can be easily adapted to your unique curriculum requirements. The flexibility of the design allows using the RTM-YAG14 at different levels of training complexity, from the basics all the way to the levels approaching the real production environment.

  • Scalable Solution
    Scalable Solution

    The RTM-YAG14 operates independently, or in conjunction with the other GennFlex industrial training modules. Representing the next generation of industrial training systems, the RTM-YAG14 is more than a stand-alone robot cart - it is part of a highly adaptable and modular industrial training system.

  • Working Surface Modularity
    Working Surface Modularity

    The RTM-YAG14 working surface is designed to accommodate different robot and accessory module positions to optimize its operation for a given routine.

  • Component Level Modularity
    Component Level Modularity

    With a variety of optional plug-n-play modules, such as 2D/3D vision, conveyors, rotaries, and linear positioners, you can augment the RTM-YAG14 functionality as needed. By default, the RTM-YAG14 includes a quiet electric gripper with adjustable fingers.

  • SYSTEM LEVEL MODULARITY
    SYSTEM LEVEL MODULARITY

    Combine the RTM-YAG14 with the available GennFlex training modules to build manufacturing cells on-the-fly and reproduce a full production cycle, from the raw material processing to final product packaging.

  • Robust Foundation
    Robust Foundation

    Lightweight extruded aluminum cart is fully equipped with a suite of industrial grade academic tools to meet the requirements of secondary and post-secondary educational programs. The cart's dimensions and design is standardized across the entire RTM series of training modules, thus ensuring high levels of modularity and interoperability.

  • 110 Volt power
    110 Volt power

    Plugs into a standard 110 Volt / 15 Amp power outlet, no special power requirements are needed.

  • Minimal Footprint
    Minimal Footprint

    The RTM-YAG14 is easily transportable, fits through standard 32 inch door openings and easily glides on adjustable castors.

Specifications

RTM-YAG14 Data Sheet
Design
FENCELESS
Frame Structure
Extruded Aluminum
Top Surface Material
G-10 Composite
Power Requirement
110 VAC / 15 Amp

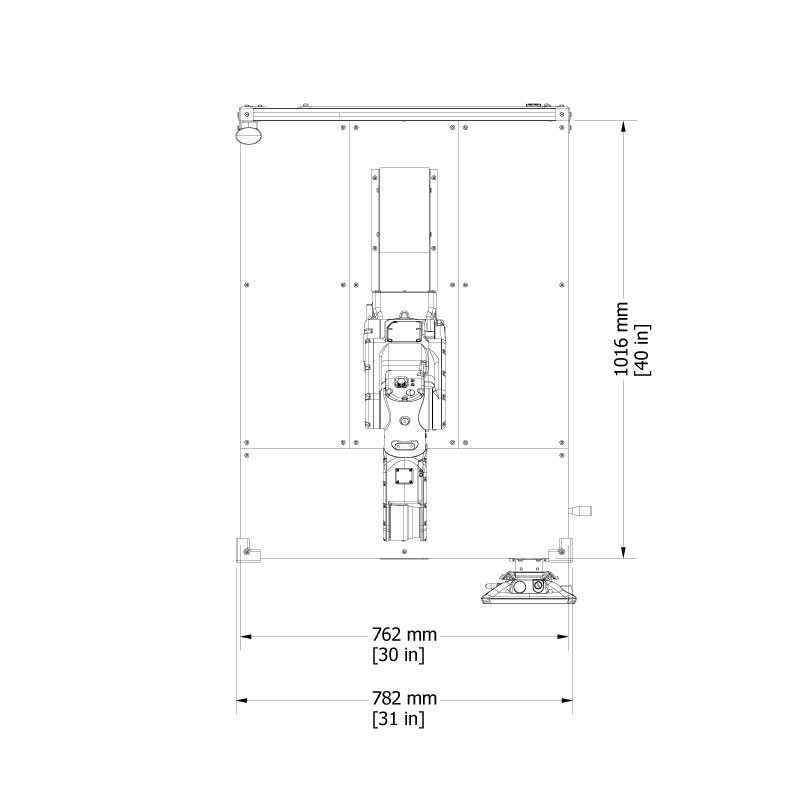

Width
782 mm (31 in)

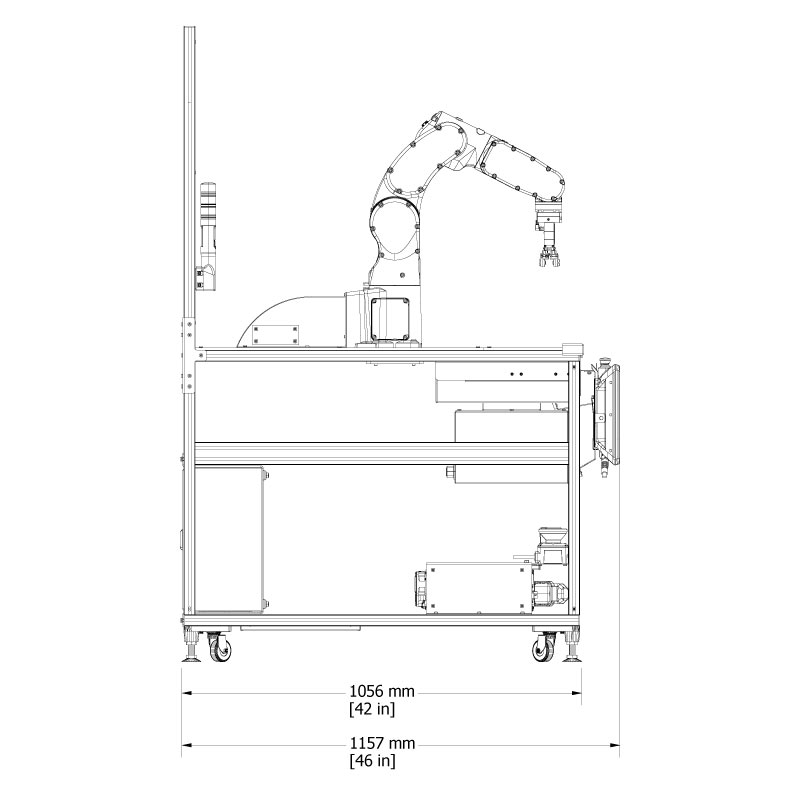

Length
1,056 mm (42 in)

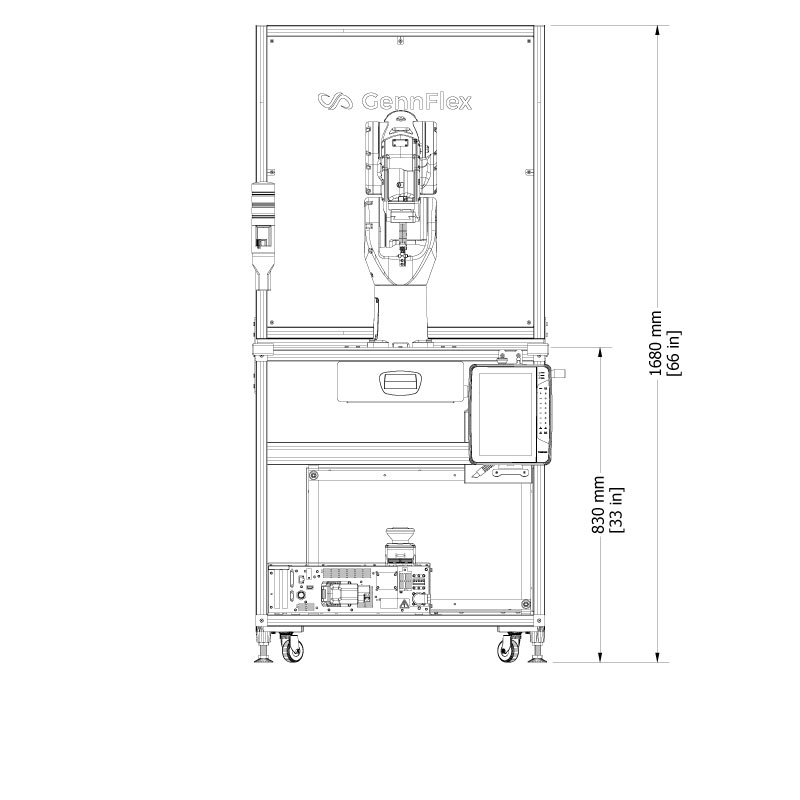

Height
1,680 mm (66 in)
Weight
121 kg (267 lb)
GP4 Data Sheet
Construction
6-Axis Articulated Arm
Horizontal Reach
550 mm (21.6 in)
Repeatability
±0.01 mm (±0.0004 in)
Power Consumption
1 kVA
Payload
4 kg (8.8 lb)
Controller
YRC1000micro
Pendant
Smart (default), Standard (optional)

Downloads

SAFETY FEATURES

Student safety is the cornerstone of our design philosophy

  • Safety Scanner
    Safety Scanner

    Fenceless design with integrated IDEC or Keyence laser safety scanner offers 270ᵒ of unobstructed coverage for a safe working zone. If anyone enters the safe zone during robot operation, the scanner will instantly stop the robot.

  • Reduced Robot Speed
    Reduced Robot Speed

    Robot play speed is limited to 25% for safety.

  • Emergency stop switch
    Emergency stop switch

    In addition to the integrated safety scanner, there is an emergency stop switch located on the Smart or Standard pendant.

  • Light Tower
    Light Tower

    Immediate indication of process status is a must in any industrial application. The RTM-YAG14 includes a 3-Tier IDEC Light Tower mounted on the back wall of the module.

Powered By YASKAWA

Yaskawa GP4 Robot

Six-Axis High-Speed Assembly and Handling Robot

The agile Yaskawa GP4 offers high performance for a number of applications. With the axis speeds of up to 1000/s, repeatability of ±0.01 mm, IP67 protection class, small footprint, and a payload of up to 4 kg, it is ideally suited for high precision assembly, quality testing, and machine tending applications.

Yaskawa YRC1000micro Controller

Ultra-Compact Industrial Robot Controller

Powerful and precise, the ultra-compact YRC1000micro controller offers a number of advantages beneficial for the industrial training environment. Paired with the matching Smart (default) or Standard Teach Pendants from Yaskawa, it provides ability to evaluate 3D simulation of robot motion on screen before or during robot execution.

Yaskawa MotoSim Software

Build and Simulate a Robotic Workcell
Yaskawa provides MotoSim EG-VRC for building and simulating your robot cell. MotoSim is designed for accurate offline programming of complex systems. With the virtual robot controller function, simulation software can be used for optimizing robot and equipment placement, reach modeling, accurate cycle calculations, automatic path generation.

Integrated Storage Drawer

Every RTM module comes equipped with an integrated storage drawer. Inside the drawer you will find pre-cut foam inserts for a set of tools and accessories supplied with the module.
