Robotic Training Module + Teaching Aids + Accessories

EDU-SYS-1-YA11 Hardware PACKAGE

Recommended Application
  • Higher ED & Adult Learning Programs
  • Robotics Training
Cart Design
  • Fenceless
Summary

A core part of the GennFlex EDU System I, the EDU-SYS-1-YA11 Hardware Package is a versatile yet compact robotic training module, powered by the YASKAWA MotoMINI robot and YRC1000micro controller. This pre-engineered, Industry 4.0-ready solution is ideal for classrooms, labs, training centers offering robotic, automation or mechatronic programs.

REQUEST A QUOTE
DETAILS
EDU-SYS-1-YA11

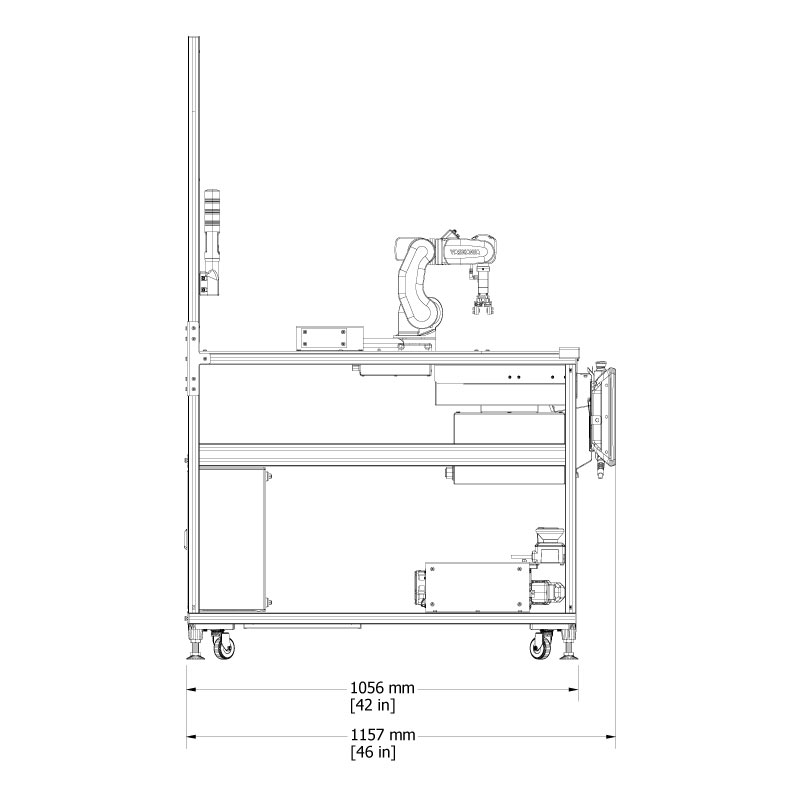

EDU-SYS-1-YA11 Side Dimensions

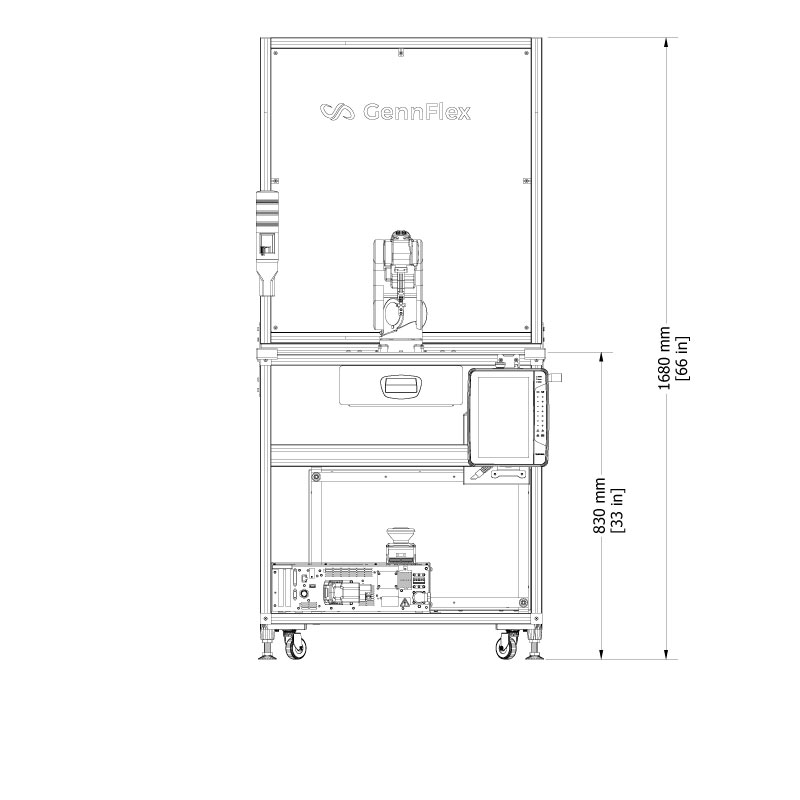

EDU-SYS-1-YA11 Front Dimensions

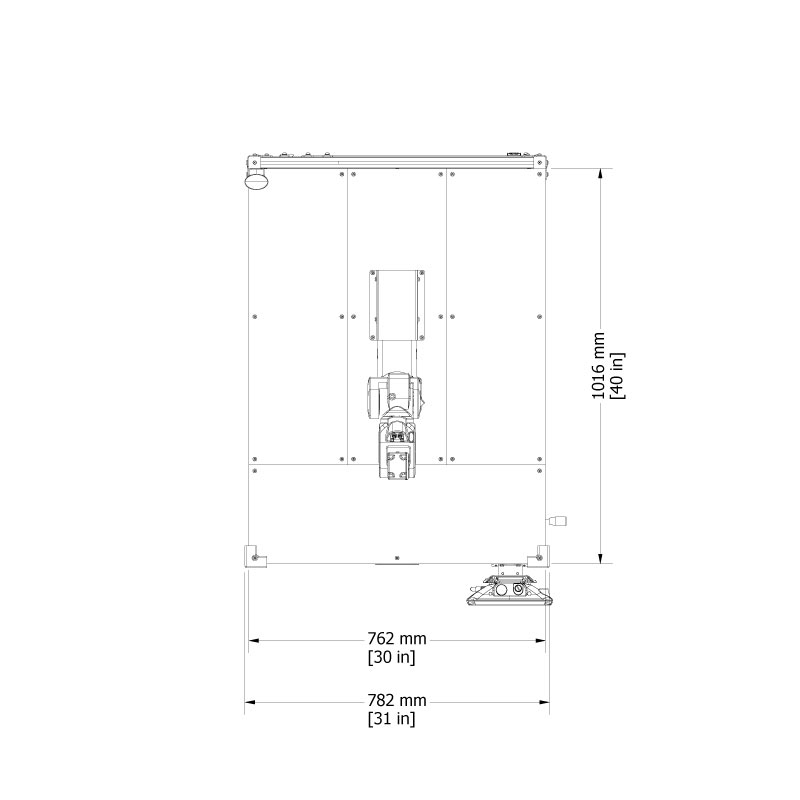

EDU-SYS-1-YA11 Top Dimensions
Previous
Next
BUILT UPON

RTM-YAG11 Robotic Training Module

EDU-SYS-1-YA11 Features At-a-Glance

Flexible Configuration
Modular
Solution
Tooling & Accessories
110 Volt Power Requirement
Minimal
Footprint
0.5 KG / 1.1 LB PAYLOAD
RTM-YAG11 Details

EDU Hardware PACKAGE

Scope of Delivery

Robotic Cart Assembly

  • YASKAWA MotoMINI 6-Axis Robot
    YASKAWA MotoMINI 6-Axis Robot
  • Yaskawa YRC1000micro controller
    Yaskawa YRC1000micro controller
  • Yaskawa Smart Pendant
    Yaskawa Smart Pendant

    With pendant holder and cable winder

  • Aluminum extrusion frame with casters
    Aluminum extrusion frame with casters
  • Modular G-10 Work Surface
    Modular G-10 Work Surface
  • Laser Safety Scanner
    Laser Safety Scanner
  • 3-segment Tower Light
    3-segment Tower Light
  • Control Cabinet
    Control Cabinet
  • 110/220 Step-up AC Autotransformer
    110/220 Step-up AC Autotransformer
  • Input/Output Pendant
    Input/Output Pendant

    With mounting bracket

  • Storage Drawer
    Storage Drawer

    Essential tools included inside the drawer

  • Storage Cabinet with trays
    Storage Cabinet with trays

    Houses included teaching aids

  • Conveyor
    Conveyor

    With the sensor bracket

Add Your Tooltip Text Here

Peripherals & Accessories

  • Schunk electric gripper with cable
    Schunk electric gripper with cable
  • GennFlex Quick-change tool adapter set
    GennFlex Quick-change tool adapter set
  • 3D-printed gripper fingers (2 sets)
    3D-printed gripper fingers (2 sets)
  • Peripheral connection cable management system
    Peripheral connection cable management system

Teaching Aids

  • 110 VAC single phase conveyor
    110 VAC single phase conveyor

    With controller, guide with integrated IR sensor bracket

  • IR sensor
    IR sensor
  • Dry-erase board and markers
    Dry-erase board and markers
  • 1
    1" Color cubes
  • Cube rack
    Cube rack
  • Miniature pallets
    Miniature pallets
  • TCP (Tool Control Point) tool
    TCP (Tool Control Point) tool
  • XYZ coordinates model
    XYZ coordinates model

Powered By YASKAWA

MotoMini 6-Axis Robot

Smallest and Lightest 6-Axis Robot in the Industry

Equipped with the highest acceleration in a small-sized robot the MotoMINI is 20% faster than comparable small robots, reducing cycle time and boosting productivity. Designed for extremely agile high-speed performance for a wide range of applications, the quiet, compact, and precise MotoMini can take your small-part process to the next level.

YRC1000micro Controller

Ultra-Compact Industrial Robot Controller

Powerful and precise, the ultra-compact YRC1000micro controller offers a number of advantages beneficial for the industrial training environment. Paired with the matching Smart (default) or Standard Teach Pendants from Yaskawa, it provides ability to evaluate 3D simulation of robot motion on screen before or during robot execution.
