EDU-WLD-1A Robotic Arc Welding Cell

$133,000.00

EDU-WLD-1A is a pre-engineered, Industry 4.0-ready robotic arc welding cell designed for low- to medium-volume fabrication. It is ideal for light industrial and educational use. GennFlex Welding cells deliver powerful performance while boasting a compact footprint.

SKU EDU-WLD-1A Category

Description

EDU-WLD-1A Robotic Arc Welding Cell

EDU-WLD-1A is a pre-engineered, Industry 4.0-ready robotic arc welding cell designed for low- to medium-volume fabrication. It is ideal for light industrial and educational use. GennFlex Welding cells deliver powerful performance while boasting a compact footprint. EDU-WLD-1A features a safety guarding perimeter. Side and front service doors feature safety interlocks.

GennFlex Welding cells operate with both traditional robotic welding and next-generation AI-powered interfaces! These welding cells integrate the Wandelbots Teaching welding system for an automated and accurate welding operation. Wandelbots Teaching software is easy to learn. Someone with limited or no exposure to welding or robot programming will only need to complete a 2-week Robotic Welding training course by GennFlex to learn to operate both the robot and the Wandlebots teaching system!

EDU-WLD-1A is Powered By
Fronius TPS320i Power Source
Wandelbots Teaching
YASKAWA AR1440 Robot
Available Configurations COMPARISON

EDU-WLD-1 series of robotic welding cells scale their welding power and functionality based on the integrated Fronius power source. The overall cell design and most components, besides the power source, are identical.

EDU-WLD-1A

(This product)
Components
Features
Join the AI-Powered No Code No Programming Welding Revolution with Wandelbots

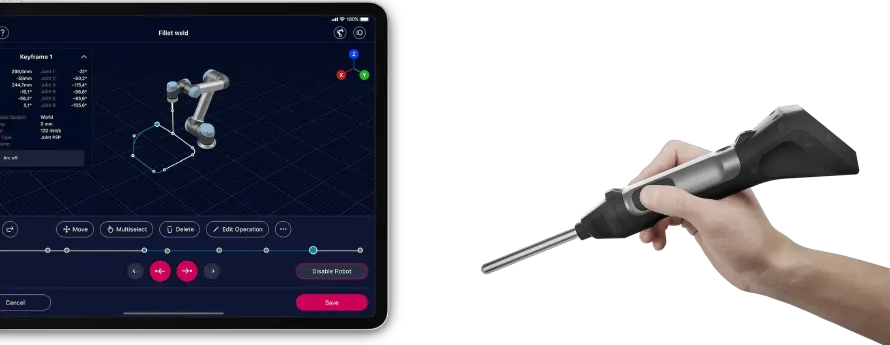

Wandelbots Teaching

With Wandelbots Teaching, everyone can program a robot. There is no need for experienced robotics specialists. By operating an intuitive user interface without complex programming, your team members can teach a robot with three easy steps.

Step 1

Demonstrate

Step 2

Edit

Step 3

Run

Powered By Yaskawa
Slim, Thru-Arm Arc Welding AR1440 Robot

The six-axis AR1440 robot provides fast and accurate performance to boost productivity for arc welding applications. A slim profile allows for high-density robot placement, and a contoured arm gives easy access to parts in confined spaces, avoiding potential fixture interference. The AR1440 has a symmetric wrist, with a generous range, providing equal torch access to both sides of a part. A 50 mm thru-hole reduces cable interference and wear, and an enhanced feeder mounting area on the arm reduces equipment obstruction.

YRC1000 Robust Next-Generation Robot Controller

The YRC1000 is a compact, fast, and flexible high-performance robot controller for YAASKAWA robots. Path accuracy improvement assures increased precision in trajectory performance independent of the motion speed. Building on the success of the powerful DX200 controller, the YRC1000 is faster and more precise. This next-generation controller provides operators and service staff with powerful functionality while retaining the proven controller performance Yaskawa is known for. The YRC1000 uses the lightweight standard teach pendant.

EDU-WLD-1A Specifications
System Data Sheet
DesignFence Enclosed
Welding Input Power380-480 VAC
Power Supply Amperage320 A
Wire Diameter.045
Cell Width2700 mm (108.5 in)
Cell Length2560 mm (104.5 in)
Cell Height2250 mm (88.5 in)
Shipping MethodFreight
Robot Data Sheet
ModelYaskawa AR1440
Type6-Axis Articulated Arm
Payload12 kg (26.5 lb)
Horizontal Reach1440 mm (56.7 in)
Repeatability±0.02 mm (±0.0008 in)
ControllerYRC1000
Power Input380-480 VAC
PendantStandard
Table Dimensions
With the 7th Axis
Length1120 mm (44 in)
Width600 mm (23.5 in)
Without the 7th Axis
Length1778 mm (70 in)
Width600 mm (23.5 in)
Scope of EDU-WLD-1A Delivery
GennFlex Robotic Welding Training

Need your team trained to operate our Robotic Welding Cells?

2 Weeks To Get Your Team Trained in:
1. Robot Programming with Yaskawa YRC1000 Controller
2. Welding with Fronius
3. Robotic Welding with Wandelbots Teaching
+ invaluable hands-on experience of welding with EDU-WLD-1 systems
Talk To Us To get your training questions answered

Additional information

Dimensions109 × 105 × 89 in
Study Area

Robotic Welding

Frame Design

Enclosed

Robot Brand

Yaskawa

Robot Type

Articulated Arm

Payload

12 kg
